Home/Products/Clean Water Pump

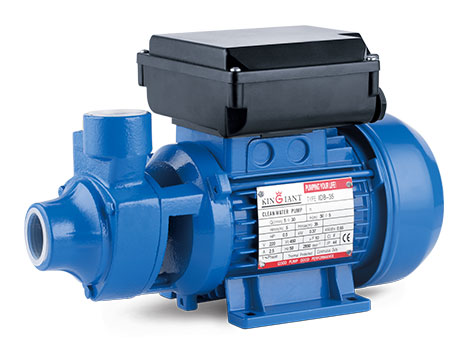

IDB Series Clean Water Pump

To share：

IDB

PUMP Peripheral

PUMP: Peripheral

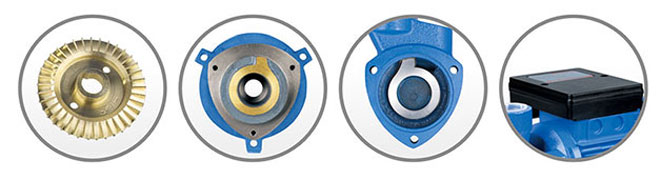

Pump Body: Cast Iron / Cast Iron With Brass Insert
/ Cast Iron With Stainless Steel Insert
Impeller: Brass
Mechanical Seal: Carbon + Ceramic + Stainless Steel + Rubber
Front Cover: Cast Iron / Cast Iron With Brass Insert
  • Overiew
  • Feature

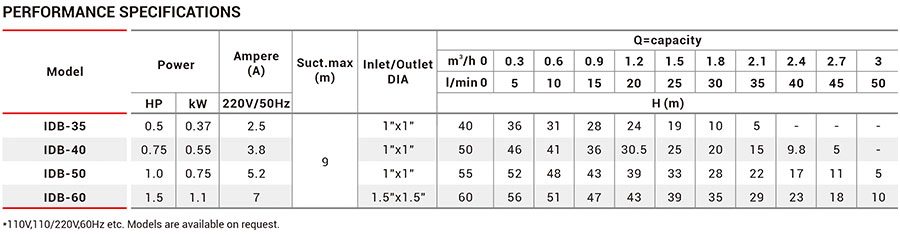

  • Specification
  • Download

  • Clean  water pump series are high efficient household electric pumps, with the miniature heavy-duty electric motor and the peripheral pump couple directly. They have the advantages of simple construction, small measurement, light weight, higher head, easy operation and maintenance.



    They do well in carrying clean water or the liquid whose physical and chemical nature similar to clean water, not exceeding 40℃.They are ideal for household well water pumping, water injection supplying, car washing, and garden watering etc.


    MOTOR: Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel / 304 Stainless Steel Welded
    / 420 Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External Ventilation
