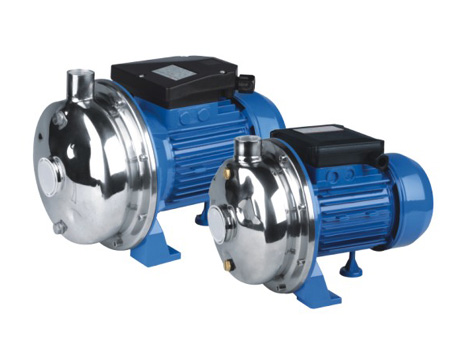

SCM-ST Series Electric Centrifugal Pump

To share：

SCM-ST

PUMP Centrifugal

Pump Body: Cast Iron
Impeller: Brass / Cast Iron
Mechanical Seal: Carbon / Ceramic / Stainless steel
  • Overiew
  • Feature
  • Specification
  • Download

  • SCM-ST series STAINLESS STEEL centrifugal pumps are single stage, high efficient electric pumps, consists of a miniature motor and a single impeller centrifugal pump.
    The pump and the impeller are made of stainless steel, make it better and ideal for pumping drinking water.
    They have a good performance in Big Capacity and High Head.

    MOTOR Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External ventilation

  • Model Power

    Q.max.
    L/min

    H.max.
    m

    		 Inlet/Outlet
    mm
    HP KW
    SCM-18ST 0.5 0.37 140 18 30x25
    SCM-20ST 0.75 0.55 145 20 30x25
    SCM-26ST 1 0.75 150 26 30x25
    SCM-34ST 1.5 1.1 192 34 30x25
