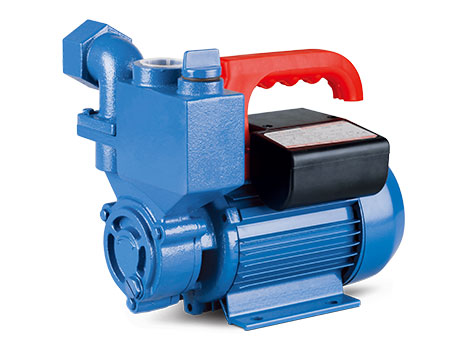

STP Series Self-sucking Pump

STP

PUMP Peripheral - Self Sucking

PUMP: Peripheral - Self Sucking
Pump Body: Cast Iron
Impeller: Brass
Mechanical Seal: Carbon + Ceramic + Stainless Steel + Rubber
Front cover: Cast Iron
  • Overiew
  • Feature

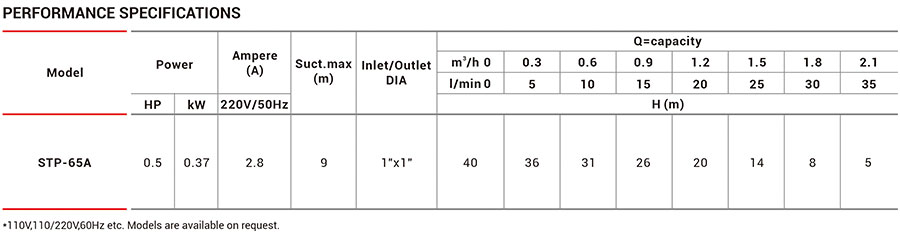

  • Specification
  • Download
  • Self-sucking water series pumps are new designed high efficiency house-hold electric pumps, with the motor and the pump mounted together. They are sealed with wear-resistant mechanical sealing, and carry the merits of easy to operate, light weight, high efficiency and relative low consumption of power.



    The series pumps have self-sucking function, which make it more better for use in places that pumping clean water, and request intermission kind of working, but without refilling the water from each restarting of the pumps.




    MOTOR: Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel  / 304 Stainless Steel Welded
    / 420 Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External Ventilation
