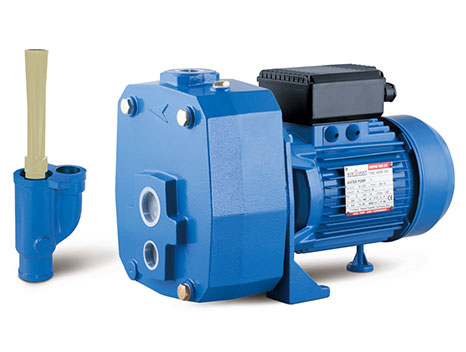

KDP151/251 Series Deep Well Self-priming Jet Pump


PUMP Centrifugal Self-Priming JET

PUMP: Centrifugal - Self Priming JET
Pump Body: Cast Iron

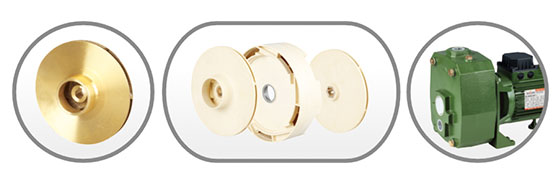

Impeller: Brass / P.P.O. Plastics
Diffusor / Jet pipe: P.P.O. Plastics
Mechanical Seal: Carbon + Ceramic + Stainless steel
Front cover: Cast Iron
  • Overiew
  • Feature

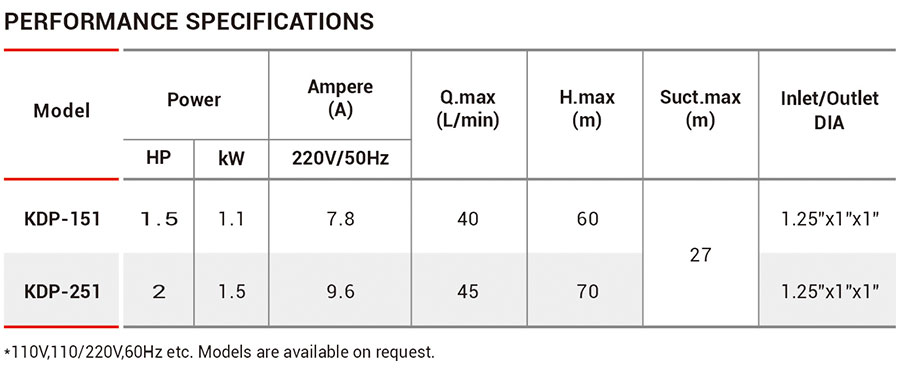

  • Specification
  • Download
  • Self-priming pumps are high efficient jetting pump with excellent suction even when there are air bubbles. The pump consists a single impeller, centrifugal pump and a nozzle with a jet pipe. The series pumps are particularly suitable for water supplying in domestic installations, small-scale agriculture watering and where self-priming operation is demanded.


    MOTOR:  Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel  / 304 Stainless Steel Welded
    / 420 Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External ventilation
