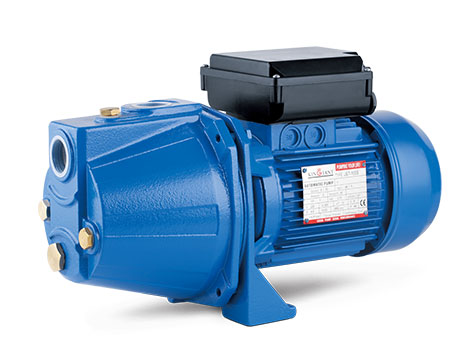

JET-S Series Self-priming JET Pump

To share：

JET-S

PUMP Centrifugal Self-Priming JET

PUMP: Centrifugal Self-Priming JET
Pump Body: Cast Iron

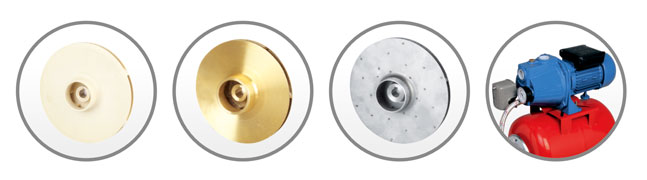

Impeller: Brass / P.P.O. Plastics / Stainless Steel
Mechanical Seal: Carbon + Ceramic +Stainless Steel + Rubber
Front cover: Cast Iron
Nozzle: P.P.O. Plastics
JET Pipe: P.P.O. Plastics
Diffussor: P.P.O. Plastics
  • Overiew
  • Feature

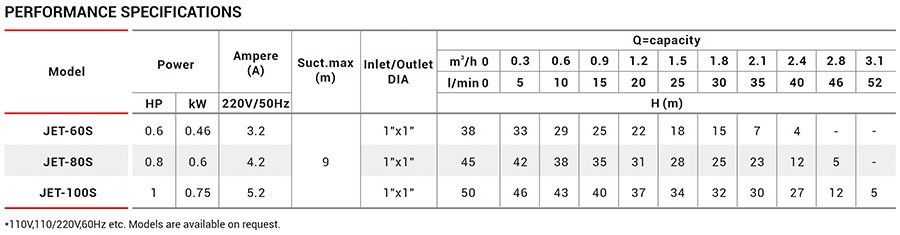

  • Specification
  • Download

  • Self-priming pumps are high efficient jetting pump with excellent suction even when there are air bubbles. The pump consists a single impeller, centrifugal pump and a nozzle with a jet pipe. The series pumps are particularly suitable for water supplying in domestic installations, small-scale agriculture watering and where self-priming operation is demanded.



    MOTOR: Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel  / 304 Stainless Steel Welded
    / 420 Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External Ventilation
