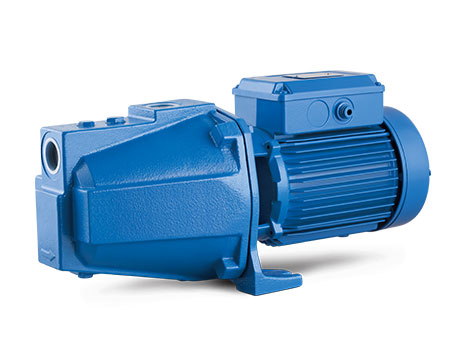

JET-100C Series Self-priming JET Pump


PUMP Centrifugal Self-Priming JET

PUMP: Centrifugal Self-Priming JET
Pump Body: Cast Iron

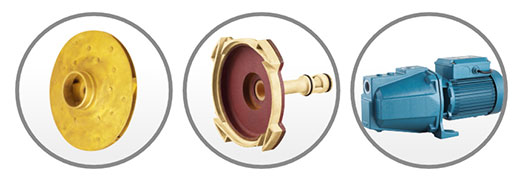

Impeller: Brass
Mechanical Seal: Carbon + Ceramic + Stainless Steel + Rubber
Front cover: Cast Iron
Nozzle: P.P.O. Plastics
JET Pipe: P.P.O. Plastics
Diffussor: P.P.O. Plastics / Cast Iron
  • Overiew
  • Feature

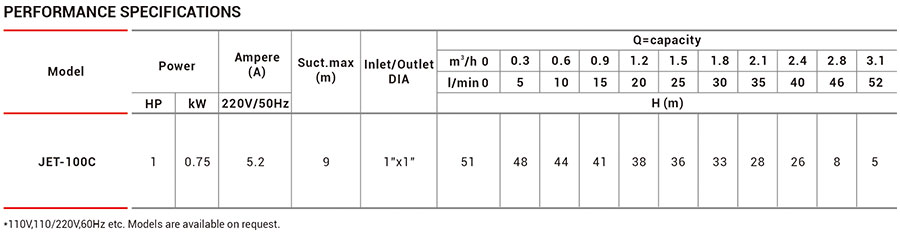

  • Specification
  • Download
  • Self-priming pumps are high efficient jetting pump with excellent suction even when there are air bubbles. The pump consists a single impeller, centrifugal pump and a nozzle with a jet pipe. The series pumps are particularly suitable for water supplying in domestic installations, small-scale agriculture watering and where self-priming operation is demanded.


    MOTOR: Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel  / 304 Stainless Steel Welded
    / 420 Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External Ventilation
