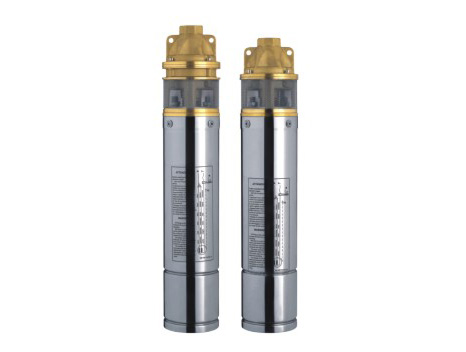

4SK(M) Series Electric Submersible Pump

4SK(M)

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548
  • Overiew
  • Feature

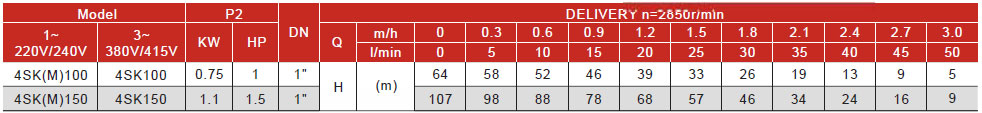

  • Specification
  • Download
  • Applications:
    For water supply from wells or reservioirs
    For domestic use, for civil and industrial applications
    For garden use and irrigation

    Operating conditions:
    Maximum fluid temperature up to +35℃
    Maximum sand content: 0.25%
    Maximum immersion: 80m
    Minimum well diameter: 4"

    STARTING CONTROLLER FOR SINGLE PHASE MOTOR
    Suitable application range
    Single phase capacitance operating motor is equipped with a extemal capacitance and a over-load protector in the starting controller which are automatically break down power supply (manual recover) when motor over-loading.

    Product functions
    Protect against short circuit
    Protect for over current
