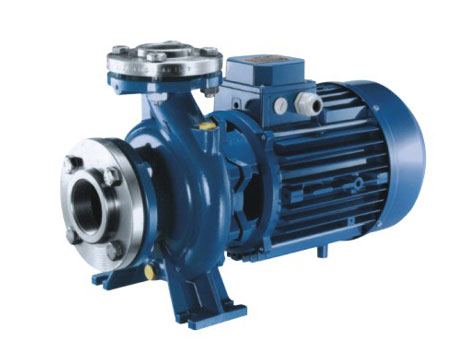

CMI Series Electric Industry Centrifugal Pump


PUMP Centrifugal - Big Capacity

Pump Body: Cast Iron

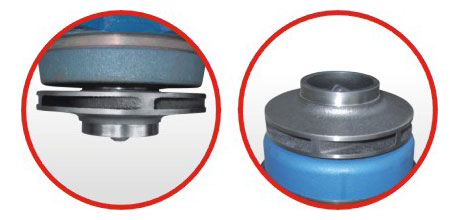

Impeller: Brass / Cast Iron
Mechanical Seal: Carbon / Ceramic / Stainless steel
  • Overiew
  • Feature
  • Specification
  • Download
  • USES - Monobloc horizontal centrifugal pumps, constructed to EN 733 standards; widely used in water supplies, pressurisation and fire-fighting systems, standard supply with counter-flange.
    Main application: household water pumping, circulation and domestic power boosting.
    High building water supplying boostering.
    Industry water suppling circulating boostering.

    MOTOR Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel / Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External ventilation
