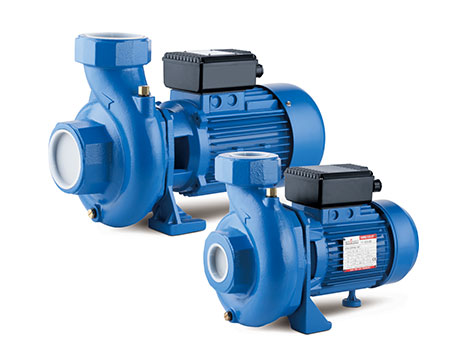

KCS Series Centrifugal Pump

KCS

PUMP Centrifugal

PUMP: Centrifugal
Pump Body: Cast Iron

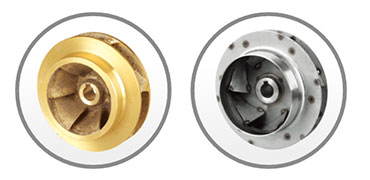

Impeller: Brass / Stainless steel
Mechanical Seal: Carbon + Ceramic + Stainless steel + Rubber
Front cover: Cast Iron
  • Overiew
  • Feature

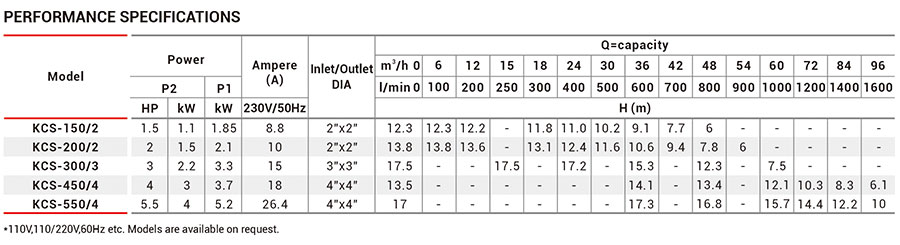

  • Specification
  • Download
  • Centrifugal  pumps series are single stage, high efficient electric pumps, consists of a miniature motor and a single impeller (or twin impeller)  centrifugal pump. They have a good performance in Big Capacity and High Head.

    They are widely used in well-pumping, water supplying, decanting, mixing and irrigating for civil, industry and argriculture, etc.



    MOTOR:  Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel  / 304 Stainless Steel Welded
    / 420 Stainless Steel
    Insulation: Class B / Class F
    Protection: IP44 / IP54
    Cooling: External ventilation
