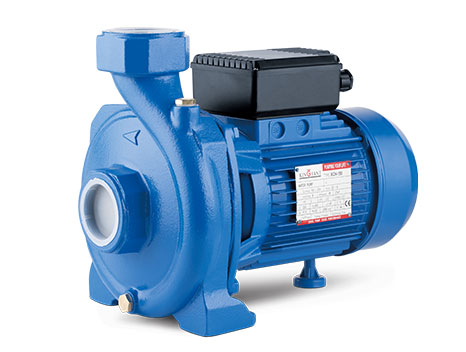

KCH Series Centrifugal Pump


PUMP Centrifugal

PUMP: Centrifugal
Pump Body: Cast Iron
Impeller: Brass
Mechanical Seal: Carbon +Ceramic + Stainless steel+ Rubber
Front cover: Cast Iron
  • Overiew
  • Feature

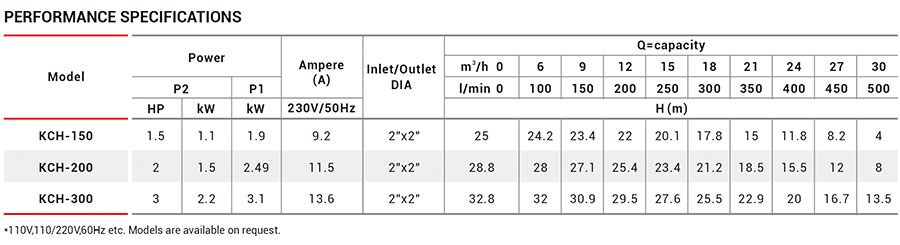

  • Specification
  • Download
  • Centrifugal  pumps series are single stage, high efficient electric pumps, consists of a miniature motor and a single impeller (or twin impeller)  centrifugal pump. They have a good performance in Big Capacity and High Head.
    They are widely used in well-pumping, water supplying, decanting, mixing and irrigating for civil, industry and argriculture, etc.


    MOTOR:  Single Phase Heavy Duty Continuous Work
    Motor Housing: Aluminium
    Shaft: Carbon Steel  / 304 Stainless Steel Welded
    / 420 Stainless Steel
    Insulation:  Class B/Class F
    Protection: IP44/IP54
    Cooling: External ventilation
